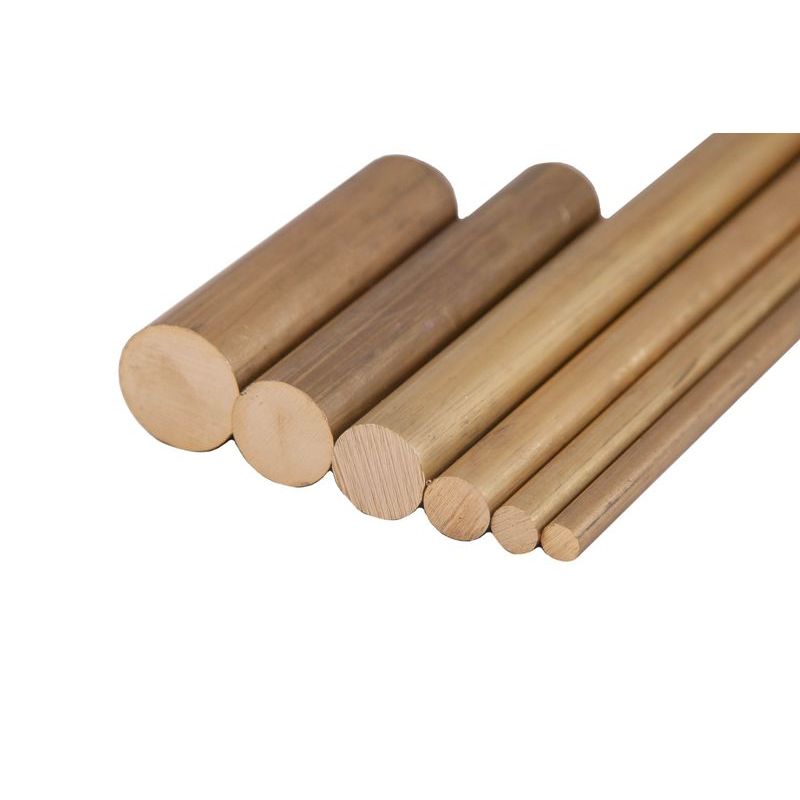

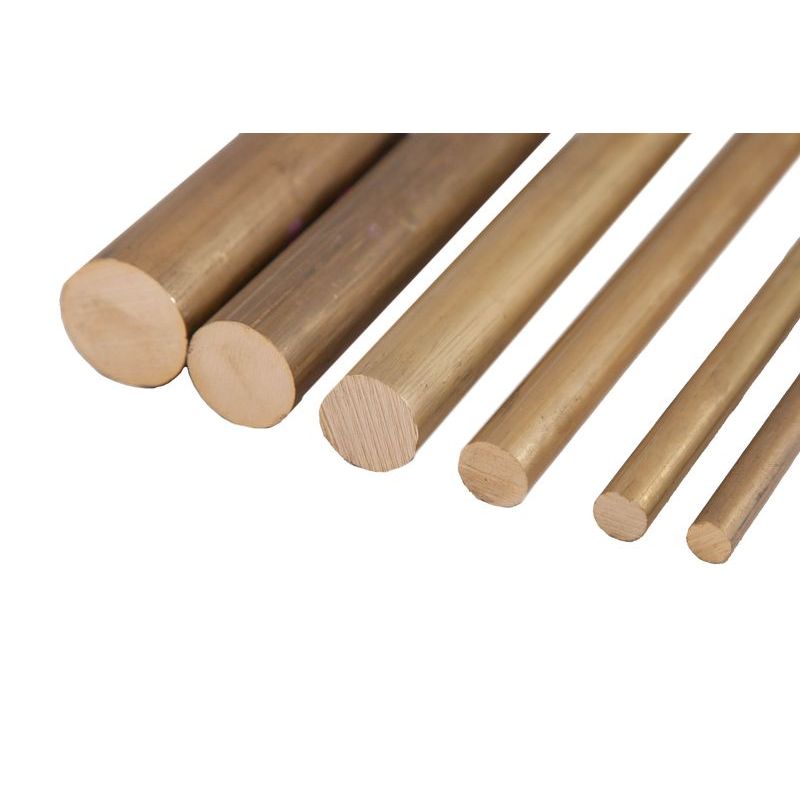

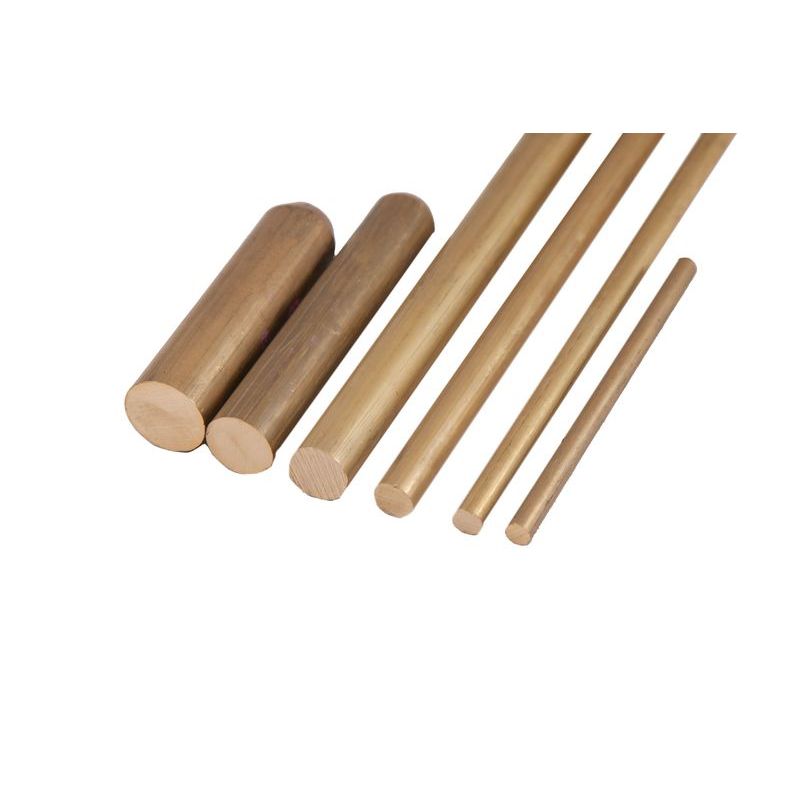

Brass rod Ø0.4-400mm Round rod Brass round material 2.0401 CuZn39Pb3 Ms58 Brass round rod 0.02-1meter
- Diameter from 0.4mm to 400mm; length: from 0.02 meter up to 1 meter.
- Applications: Fittings and tap handles; screws and nuts; valve bodies; parts for electrical engineering and general mechanical engineering; cable clamps; ballpoint pen tips.
- If your required length/width is not listed, please select the next larger length/width. Leave a comment with the desired length/width with your order. We will cut to your size.
- Dimensional tolerances: +/-2mm.
- Can't find the sizes you want? Just get in touch with us! We will be happy to help you with your request.
Length tolerance +/-2mm
Important: the ends of sawn bars may be sharp/not deburred. The product photos show bars at production length. The sawn bars supplied may differ from this.
Do you need a different steel quality or dimensions? Please write to us. Our sales team will make you an offer from our stock program or delivery program :)
- Production time - none. Already in stock.
- Preparation for shipment - 2-3 working days.
- Delivery time - depending on the parcel service. Please look at the faq.
Brass round bar with the material number 2.0401 is composed of copper (approx. 57-59 %), lead (approx. 2.5-3.5 %) and a remainder of zinc (approx. 36-40 %). The material 2.0401 is easily hot formable, but high hardness and strength of the grade are achieved through cold formability. However, cold formability itself is limited due to the risk of stress corrosion cracking. Brass round material also has very good machinability and is well suited for soft and hard soldering. Brass round bar CuZn39Pb3 is easy to stamp and can only be polished mechanically (not suitable for electrolytic or chemical polishing).
Evek GmbH offers brass round bar in various sizes and at a good price. As a competent supplier of CuZn39Pb3 Ms58, we ensure uncomplicated shipping worldwide.
Due to its lead content, brass round bar can only be welded to a limited extent. The material must not be welded using the following welding processes: manual arc welding, gas welding, TIG and MIG welding. Resistance welding is best suited for welding this grade. Brass round material 2.0401 Ms58 has a relatively low corrosion resistance. In particular, it is not resistant to various salt solutions, organic liquids and water.
Brass round bar CuZn39Pb3 is frequently used in the following areas:
- Fittings and tap handles;
- Screws and nuts;
- valve bodies;
- Parts for electrical engineering and general mechanical engineering;
- cable clamps;
- Ballpoint pen tips.
Brass round steel is characterized by the following properties:
- very good hot formability;
- very good machinability;
- suitable for soft and hard soldering;
- good punching and mechanical polishing properties;
- limited weldability (resistance welding is best recommended);
- relatively low corrosion resistance to aggressive media (water, various salt solutions and organic liquids).
You can buy brass round material from Evek GmbH in no time at all. Our online store is available around the clock. If you have any questions, please contact us.
Chemical composition (in %)
| Cu | Zn | Pb | Ni | Fe | Sn | Al | Others |
| 57.0 - 59.0 | Other | 2.5 - 3.5 | 0.3 | 0.5 | 0.3 | 0.05 | 0.2 |
- Type
- Round bar
- material
- Brass
- operation area
- Fittings and tap handles; screws and nuts; valve bodies; parts for electrical engineering and general mechanical engineering; cable clamps; ballpoint pen tips
- Material number
- 2.0401
- US
- C38500
- Alloy
- CuZn39Pb3
- density
- 8.47 g/cm³
- Melting point
- 888 °C
- Thermal conductivity
- 123 W/(m-K)
- Electrical resistance
- 0.066 Ω mm²/m
- Electrical conductivity
- 15 MS/m
- tensile strenght
- min. 360 MPa
- surface
- smooth (may contain handling or storage marks)
