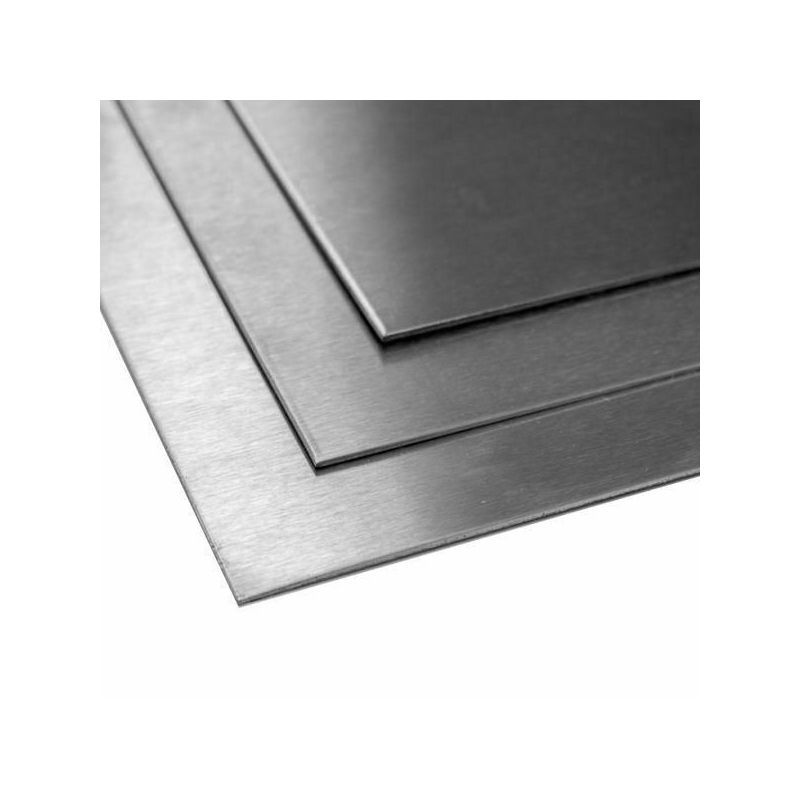

Titanium sheet grade 2 1mm titanium plate 3.7035 Titanium sheet cut 100 mm to 2000 mm
Titanium sheet grade 2 1mm titanium plate 3.7035 Titanium sheet cut 100 mm to 2000 mm
The tolerance for the width and length of a sheet metal blank is +/- 2mm
Do you need other steel quality or dimensions? Please write to us. Our sales team makes an offer from stock program or delivery program :)
- Production time - none. Already in stock.
- Shipping preparation - 2-3 working days.
- Delivery time - depending on the parcel service. Look at the faq please.
Grade 2 titanium sheet is made from an unalloyed pure titanium. It consists of at least 99.2% titanium. 3.7035 is characterized by a high level of corrosion resistance in oxidizing and alkaline environments. The quality is insensitive to organic acids and compounds as well as hot gases and aqueous salt solutions. Titanium sheet is stable in sea water. Material 3.7035 can be welded well with all common welding processes and has a high notch impact strength and good creep strength. It also has high ductility and toughness. Titanium 3.7035 is biocompatible, which means that it is acceptable with the human body. Titanium plate is not magnetic.
If you would like to buy titanium sheet, please contact us directly. We have a good titanium sheet price and we ship worldwide. We also offer titanium sheet cutting.
Grade 2 titanium sheet is in great demand in many industries. It is mainly used in the chemical industry (apparatus engineering). Because of its excellent salt and sea water resistance, it is still very much in demand in the offshore sector. Further main areas of application for material 3.7035 are:
- Aerospace engineering (various components);
- Shipbuilding;
- Seawater desalination and flue gas desulphurisation systems;
- Medical technology;
- Heat exchangers (various components);
- Low temperature technology (cryogenic container).
Titanium plate with material number 3.7035 is characterized by the following features:
- high corrosion resistance in oxidizing and alkaline environments;
- Insensitivity to organic acids and compounds as well as hot gases and aqueous salt solutions;
- excellent seawater resistance;
- high impact strength and good creep strength;
- excellent weldability;
- high ductility and toughness;
- excellent biocompatibility;
- not magnetic.
If you want to buy titanium plate, Evek GmbH is there for you. As an experienced supplier, we ship smoothly and easily. Our online shop offers a wide range of titanium sheet cuts and titanium plates.
- Type
- sheet
- material
- titanium
- operation area
- Offshore industry; Aircraft construction; Apparatus and plant construction; Production of heat exchangers; chemical industry
- Material number
- 3.7035
- EN
- Titanium grade 2
- US
- R50400
- density
- 4.51 g / cm³
- Melting point
- 1670 ° C
- Thermal conductivity
- 20 W / (m K)
- Electrical resistance
- 0.48 Ω mm² / m
- tensile strenght
- min. 345 MPa
- Stretch limit
- min. 275 MPa
- strain
- min. 20%
- Constriction of the fracture
- min. 30%
- surface
- smooth (may contain handling or storage tags)
