Nickel alloy

Kanthal wire 0.05-2.5mm heating wire 1.4765 Kanthal D resistance wire 1-100 meters

Nichrome 0.05-5mm resistance wire 2.4869 NiCr 80/20 Cronix heating wire 1-500 meters

• diameter from 2mm to 120mm; Length: from 0.1 meter to 2 meters.

• Areas of application: Plants for the production, storage and transport of liquefied gases; Measuring and control devices (thermostats); aircraft construction (CFRP parts); satellite construction (frames, mounts and housings for electronic control units); cryogenic components.

• If your desired length/width is not listed, select the next larger length/width. Leave a comment on your order with the length/width you want. We cut according to your measurements.

• Dimensional tolerances: +/-2mm.

• Didn't find the sizes you wanted? Just contact us! We are happy to help you with your request.

• Areas of application: construction;

• Food industry; offshore engineering; automotive industry; Chemical industry;

• Properties: easy to process; excellent acid and corrosion resistance; good weldability; can be polished and deep drawn; heat resistant up to 600°C;

• density 7.9 g/cm³; thermal conductivity 15 W/mK; electr. resistance 0.73 Ω mm²/m;

• Available cut or made to measure.

Constantan wire Ø0.04-0.45mm resistance wire 2.0842 CuNi44 heating wire 2.5-100 meters

• Grade N-0.

• Applications: Production of cathodes (corrosion protection); as alloying additive; chemical industry (nickel crucible and as catalyst for hydrogenation).

• Purity: 99.99%.

• Density 8.90 g/cm³; granule size 6 - 10 mm; melting point 1453 °C.

• Weight from 25gr to 5kg.

• Diameter from 0.05mm to 2mm; Length: from 1 meter to 500 meters.

• Areas of application: radio and electrical engineering (electrical and electronic components); Vehicle construction; medical technology; Domestic appliances; Food industry (handling of cooling brine, fatty acids and fruit juices).

• melting point 1446 °C; thermal conductivity 70.2 W/(m·K); electr. Resistance 0.09Ω mm²/m.

• Didn't find the sizes you wanted? Just contact us! We are happy to help you with your request.

Tape sheet metal tape 0.1x0.5mm to 0.5x10mm 2.4869 nichrome flat wire tape 1-100 meters

Features: good corrosion resistance; shape memory effect; superelastic; excellent flexibility; good biomechanical properties; difficult to weld;

Chromel wire 0.2-5mm Thermocouple 2.4870 Aisi - NiCr10 KN Nicrosil 1-50 meters

• Size: 0.2-5mm; Length: 1-50m.

• Areas of application: as thermocouples for temperature measurement (up to 1300 °C); production of compensating lines; Manufacture of pyrometers.

• Wnr. 2.4122; AISI NiMn3Al.

• melting point 1400 °C; thermal conductivity 30 W/(m·K); electr. Resistance 27 μΩ×cm.

• Didn't find the sizes you wanted? Just contact us! We are happy to help you with your request.

• Do you need a different steel quality or dimensions? Please write to us. Our sales team makes an offer from stock program or delivery program :)

• diameter from 3mm to 180mm; Length: from 0.05 meters to 2 meters.

• Fields of application: chemical industry; food industry; Transportation and storage of chemicals (fluoride, phenol, caustic soda); Manufacture of synthetic fibers; production of hydrogen chloride; soap making; salt production (various parts of the plant);

• Thickness: 1mm; Width from 6mm to 7mm. Length: from 1 meter to 100 meters.

• Areas of application: heating elements; electric heating resistors; heating cords; heat cable.

• If your desired length/width is not listed, select the next larger length/width. Leave a comment on your order with the length/width you want. We cut according to your measurements.

• Dimensional tolerances: +/-2mm.

• Didn't find the sizes you wanted? Just contact us! We are happy to help you with your request.

• Wnr. 2.4602; US 06022; Alloy 22;

• Fields of application: chemical industry; Environmental technology (sewage plants, waste incineration plants); heat exchangers; flue gas desulfurization plants; pulp or paper industry (bleach tanks); reactors for the production of acetic acid;

• Properties: very resistant to many corrosive media (mineral and organic acids); good resistance to seawater; insensitive to crevice, stress cracking and pitting corrosion; very good weldability;

• density 8.7 g/cm³; melting point 1355 °C;

• Available cut or made to measure.

• Diameter from 0.8mm to 5mm. Weight from 0.1kg to 5kg.

• Areas of application: Joint welding on nickel alloys of the same type, cold-resistant nickel steels and joints of different types.

• Wnr. 2.4668; US: N07718; EN: ERNiCrMo-3.

• Tensile Strength — Psi - 135,000, MPa - 930; Yield Strength (0.2% offset) — Psi - 70,000, MPa - 482; Elongation — 45%.

• Didn't find the sizes you wanted? Just contact us! We are happy to help you with your request.

• Wnr. 2.4856; US N06625; Alloy 625;

• Areas of application: offshore industry (marine engineering systems); chemical industry (production of mineral acids); Waste incineration installations; shipbuilding and manufacture of seawater pipelines; chimney linings; Environmental engineering;

• Properties: excellent resistance to pitting, erosion, crevice and intergranular corrosion; resistance to chlorine-induced stress corrosion; Resistance to mineral acids such as nitric, hydrochloric, phosphoric or sulfuric acid as well as organic acids and alkalis; good mechanical properties;

• density 8.5 g/cm³; melting point 1290 °C;

• Available cut or made to measure.

• Wnr. 2.4668; US N07718; Alloy 718;

• Areas of application: aerospace (engines, gas turbines and casings); offshore technology and marine engineering installations; oil and gas industry; nuclear reactors; Manufacture of springs and high-strength fasteners;

• Properties: good formability and hardenability; good processing properties in solution-annealed condition; excellent corrosion resistance at high and low temperatures; Insensitivity to pitting and stress corrosion cracking; very good creep strength and high fatigue strength; very good weldability; good resistance to oxidation up to 1000 °C;

• density 8.2 g/cm³; melting point 1260 °C;

• Available cut or made to measure.

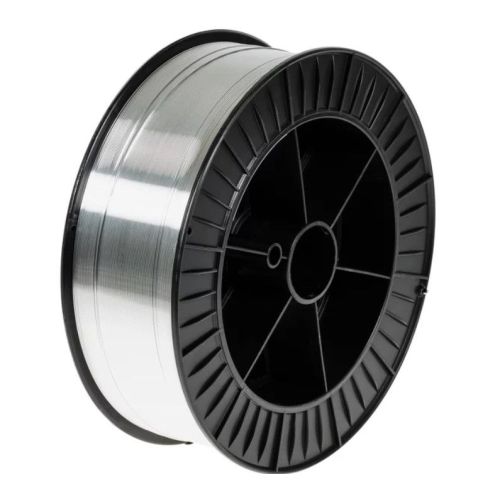

Welding electrodes Ø 0.8-5mm welding wire nickel 2.4607 NiCr23Mo16 welding rods

• Applications: food industry (handling of fatty acids and fruit juices); chemical industry (production of chlorine and hydrogen chloride, storage and transport of phenol); electronic components; production of synthetic fibers; aerospace industry; battery terminals; lead wires for heating elements;

• Properties: good mechanical, electrical, thermal and magnetostrictive properties; good resistance to a wide range of corrosive media;

• Didn't find the sizes you are looking for? Just contact us! We will be glad to help you with your request.

• Wnr. 2.4819; US N10276; Alloy C-276;

• Fields of application: chemical industry (production and processing of acids); Environmental technology (plants for waste incineration and flue gas desulfurization); paper and pulp industry; Extraction of oil and gas; equipment and components for sour gas applications;

• Properties: well suited for cold and hot forming; excellent resistance to pitting, crevice and stress corrosion; Insensitivity to mineral and organic acids; Resistance to seawater, moist chlorine gas and chloride solutions; good weldability;

• density 8.6 g/cm³; melting point 1325 °C;

• Available cut or made to measure.
