Grade 2 titanium sheet 6mm plate 3.7035 Titanium sheet cutting 100mm to 2000mm
Grade 2 titanium sheet 6mm plate 3.7035 Titanium sheet cutting 100mm to 2000mm
The tolerance for the width and length of a sheet metal blank is +/-2mm

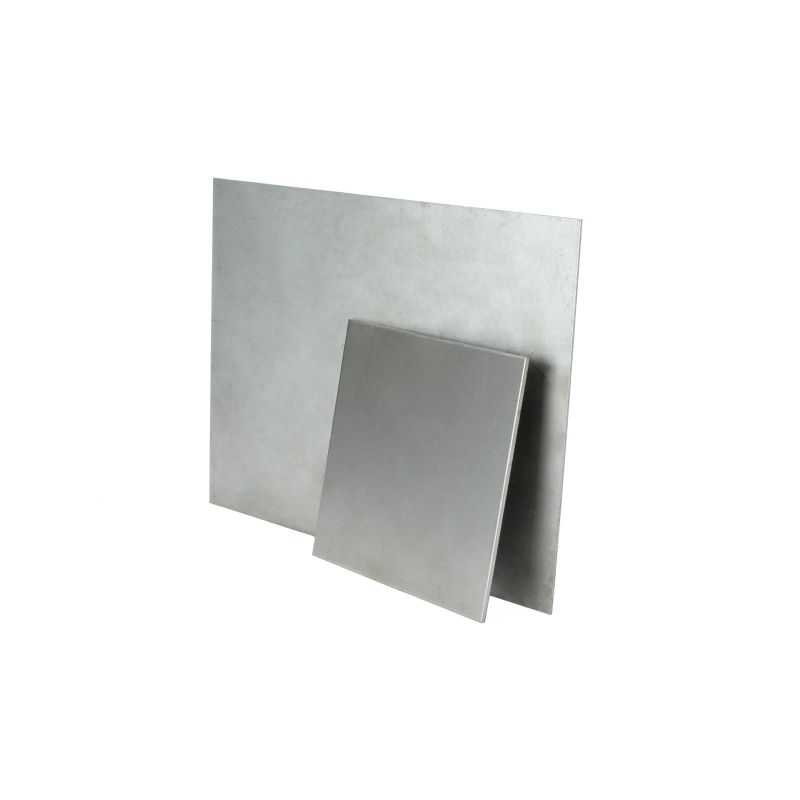

Surface is raw, so scratches are normal. Item photo is just a general example
- TOP quality at fair prices
- High-quality products made to measure and cut to size
- Competent advice & service
- Fast delivery worldwide
Technical specifications:
| Brand: | Evek |
| Manufacturer number: | Not applicable |
| Type: | sheet metal, plate |
| Material: | titanium |
| Operation area: | chemical industry (apparatus construction); offshore area; Aerospace engineering (various components); Shipbuilding; sea water desalination and flue gas desulfurization plants; medical technology; heat exchangers (various components); Low-temperature technology (low-temperature tank) |
| Norm classifications: | |
| Material number: | 3.7035 |
| EN: | Grade 2 titanium |
| US: | R50400 |
| Further information: | |
| Density: | 4.51 g/cc |
| melting point: | 1670ºC |
| thermal conductivity: | 20 W/m K |
| Electrical resistance: | 0.48Ωmm²/m |
| Tensile strenght: | 345 MPa minimum |
| Stretch limit: | 275 MPa minimum |
| Strain: | at least 20% |
| hernia reduction: | at least 30% |
| Surface: | smooth (may contain handling or storage marks) |
Description:
Grade 2 titanium sheet is made from unalloyed pure titanium. It consists of at least 99.2% titanium. 3.7035 is characterized by high corrosion resistance in oxidizing and alkaline environments. The grade is insensitive to organic acids and compounds as well as hot gases and aqueous salt solutions. Titanium sheet behaves stably in sea water. Material 3.7035 can be welded well with all common welding processes and has a high notched impact strength and good creep strength. It also has high ductility and toughness. Titanium 3.7035 is biocompatible, meaning it is acceptable with the human body. Titanium plate is non-magnetic.
Grade 2 titanium sheet is in high demand across many industries. Above all, it is used in the chemical industry (apparatus construction). Due to its excellent resistance to salt and sea water, it is still in great demand in the offshore sector. Other main areas of application for material 3.7035 are:
- Aerospace engineering (various components);
- Shipbuilding;
- sea water desalination and flue gas desulfurization plants;
- medical technology;
- heat exchangers (various components);
- Low-temperature technology (low-temperature containers).
Titanium plate with the material number 3.7035 is characterized by the following features:
- high resistance to corrosion in oxidizing and alkaline environments;
- Insensitivity to organic acids and compounds, as well as hot gases and aqueous salt solutions;
- excellent seawater resistance;
- high impact strength and good creep rupture strength;
- excellent weldability;
- high ductility and toughness;
- excellent biocompatibility;
- not magnetic.
