Titanium sheet grade 2 4mm plate 3.7035 Titanium sheet cut 100mm to 2000mm
  • Titanium sheet grade 2 4mm plate 3.7035 Titanium sheet cut 100mm to 2000mm
  • Titanium sheet grade 2 4mm plate 3.7035 Titanium sheet cut 100mm to 2000mm
  • Titanium sheet grade 2 4mm plate 3.7035 Titanium sheet cut 100mm to 2000mm

Titanium sheet grade 2 4mm plate 3.7035 Titanium sheet cut 100mm to 2000mm

£29.91
Tax included

Titanium sheet grade 2 4mm plate 3.7035 Titanium sheet cut 100mm to 2000mm

Thickness / Strength
length
width
Quantity

 Customer ratings and reviews
Nobody has posted a review yet
in this language

For the width and length of a sheet metal blank, the tolerance is +/- 2mm

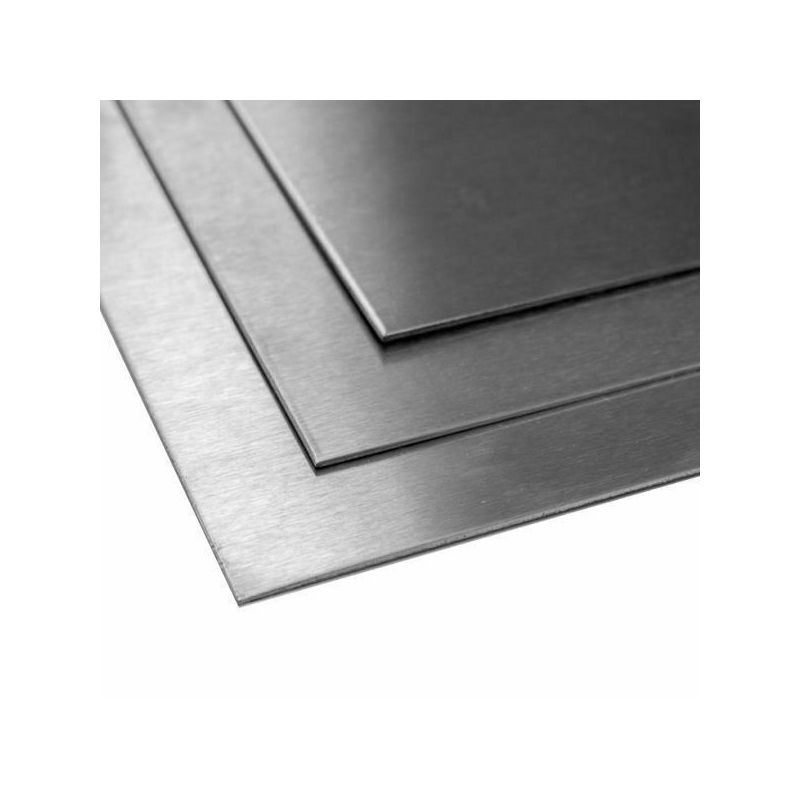

The surface is raw, so scratches are normal. Item photo is just a general example


  • TOP quality at fair prices
  • High quality, made-to-measure and cut-to-size products
  • Competent advice & service
  • Fast delivery worldwide

Technical specifications:

Brand: Evek
Manufacturer number: Not applicable
Type: Sheet metal, plate
Material: titanium
Operation area: chemical industry (apparatus engineering); Offshore area; Aerospace engineering (various components); Shipbuilding; Seawater desalination and flue gas desulphurisation systems; Medical technology; Heat exchangers (various components); Cryogenic technology (cryogenic container)
Standard classifications:
Material number: 3.7035
EN: Titanium grade 2
US: R50400
Additional Information:
Density: 4.51 g / cm³
Melting point: 1670 ° C
Thermal conductivity: 20 W / m K
Electrical resistance: 0.48 Ω mm² / m
Tensile strenght: min. 345 MPa
Stretch limit: min. 275 MPa
Strain: min. 20%
Fracture constriction: min. 30%
Surface: smooth (may contain handling or storage tags)

Description:

Grade 2 titanium sheet is made from an unalloyed pure titanium. It consists of at least 99.2% titanium. 3.7035 is characterized by a high level of corrosion resistance in oxidizing and alkaline environments. The quality is insensitive to organic acids and compounds as well as hot gases and aqueous salt solutions. Titanium sheet is stable in sea water. Material 3.7035 can be welded well with all common welding processes and has a high notch impact strength and good creep strength. It also has high ductility and toughness. Titanium 3.7035 is biocompatible, which means that it is acceptable with the human body. Titanium plate is not magnetic.

Grade 2 titanium sheet is in great demand in many industries. It is mainly used in the chemical industry (apparatus engineering). Because of its excellent salt and sea water resistance, it is still very much in demand in the offshore sector. Other main areas of application for material 3.7035 are:

  • Aerospace engineering (various components);
  • Shipbuilding;
  • Seawater desalination and flue gas desulphurisation systems;
  • Medical technology;
  • Heat exchangers (various components);
  • Low temperature technology (cryogenic container).

Titanium plate with the material number 3.7035 is characterized by the following features:

  • high resistance to corrosion in oxidizing and alkaline environments;
  • Insensitivity to organic acids and compounds as well as hot gases and aqueous salt solutions;
  • excellent seawater resistance;
  • high impact strength and good creep strength;
  • excellent weldability;
  • high ductility and toughness;
  • excellent biocompatibility;
  • not magnetic.

documentation

Datasheet (German)
