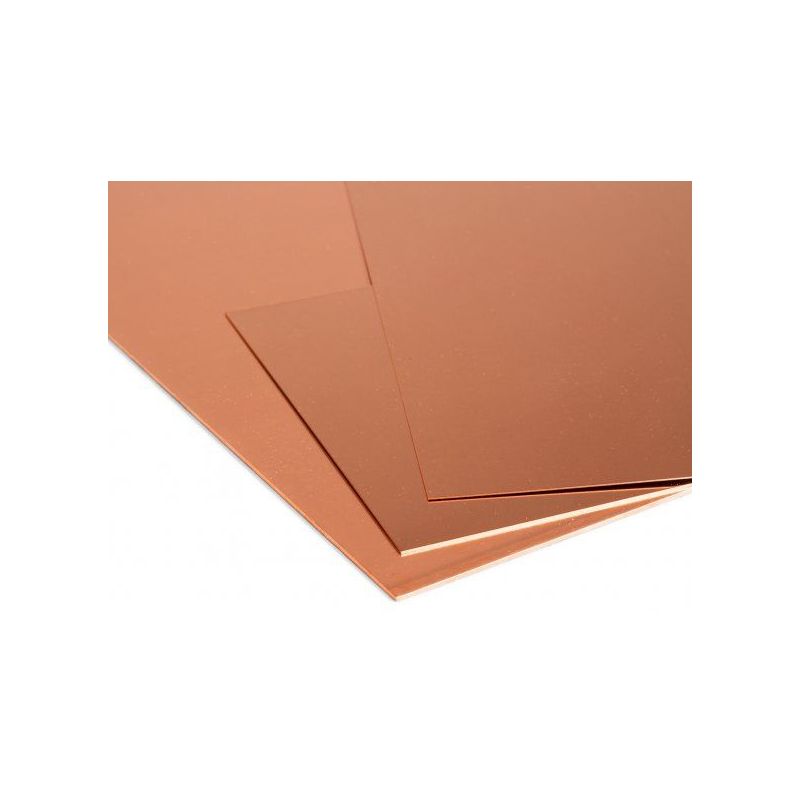

Copper sheet 3mm plates Cu sheet thin sheet selectable 100mm to 2000mm
  • Copper sheet 3mm plates Cu sheet thin sheet selectable 100mm to 2000mm

Copper sheet 3mm plates Cu sheet thin sheet selectable 100mm to 2000mm

£6.82
Tax included

Copper sheet 3mm plates Cu sheet thin sheet selectable 100mm to 2000mm

Thickness
width
length
Quantity

 Customer ratings and reviews
Nobody has posted a review yet
in this language
  • TOP quality at fair prices
  • High quality products made to measure and cut to size
  • Competent advice & service
  • Fast delivery worldwide

Technical specifications:

Brand: Evek
Manufacturer number: Not applicable
Type: sheet
Material: copper
Operation area: Manufacture of gutters and downspouts; Ceilings of roof surfaces;
Production of roof drainage; Manufacture of copper vessels
Standard classifications:
Brand: AMF
Additional Information:
Density: 8.92 g / cm³
Thermal conductivity: 401 W / m K
Electrical resistance: 0.0171 Ω mm² / m

Description:

Sheet copper is made from pure copper. The production of copper sheet is done by rolling. Copper is very valued for its excellent durability (over 200 years) and excellent properties. This metal has high electrical conductivity and high thermal conductivity. It has a good resistance to corrosion and is not attacked by hydrochloric acid and alkaline solutions. Copper is well alloyed with many metals. The most important copper alloys are brass (with zinc), bronze (with tin) and nickel silver (with zinc and nickel).

Made-to-measure copper sheet is easy to process. It can be polished, cut, and forged. Among other things, copper has good formability and toughness. The sheet metal made of copper is used in various areas of life. Copper sheet is used:

  • in the manufacture of gutters and downspouts;
  • when covering roof areas;
  • in the production of roof drainage;
  • in the manufacture of copper vessels.

Typical properties of copper sheets are:

  • excellent longevity (over 200 years);
  • high electrical conductivity and high thermal conductivity;
  • good resistance to corrosion;
  • not susceptible to hydrochloric acid and alkalis;
  • can be used as an alloy additive.

documentation

Datasheet (German)
st33
Kupfer Blech
2021-01-27

Data sheet

Type
sheet
material
copper
operation area
Elektrotechnik und Elektronik; Wärmetauscher; Anschlussklemmen; Kabel und Leitungen; Wicklungen jeder Art; Elektroden
Material number
2.0065
EN
Cu-ETP
US
CW004A
density
8,93 g/cm³
Melting point
1083 ° C
Thermal conductivity
394 W/m K
Electrical resistance
0,018 Ω mm²/m
Electrical conductivity
57 m/Ω•mm²
Oberfläche
smooth (may contain handling or storage tags)
