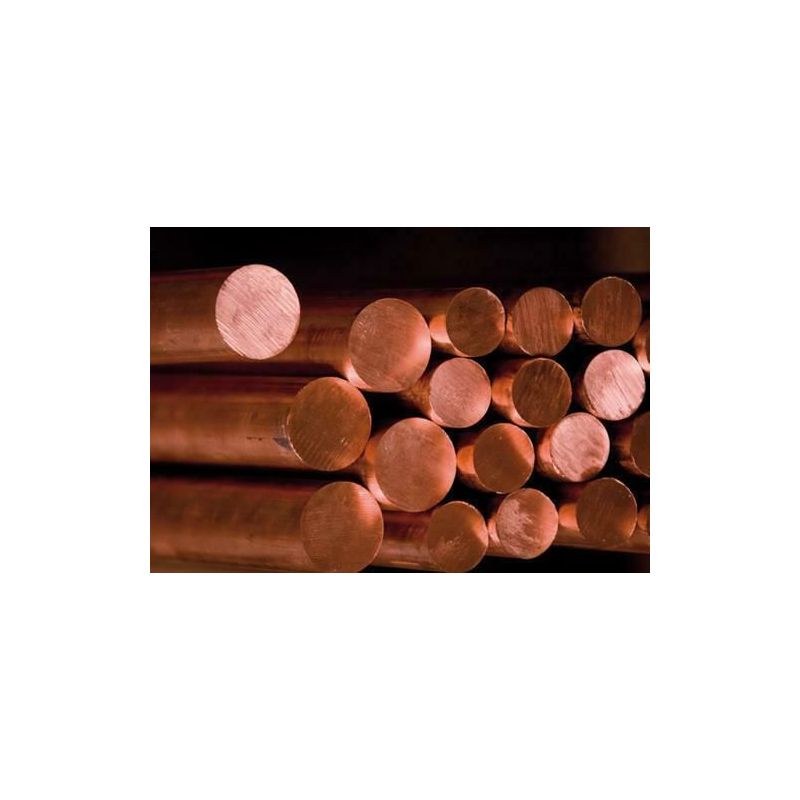

Rod Ø2-40mm copper 2.0090 round rod С10999 rod Cu round material 2 meters
  • Rod Ø2-40mm copper 2.0090 round rod С10999 rod Cu round material 2 meters

Rod Ø2-50mm copper 2.0090 round rod С10999 rod Cu round material 2 meters

£1.98
Tax included

Rod Ø2-50mm copper 2.0090 round rod С10999 rod Cu round material 2 meters

size
length
Quantity
Product available with different options

 Customer ratings and reviews
Nobody has posted a review yet
in this language

  • TOP quality at fair prices
  • High quality products made to measure and cut to size
  • Competent advice & service
  • Fast delivery worldwide

Length tolerance +/- 2mm

Technical specifications:

Brand: Evek
Manufacturer number: Not applicable
Type: Rod, round rod
Material: copper
Operation area: Heating and cooling technology (heating and cooling elements); Construction (as decoration for ambience, facades, etc.); Electrical engineering and apparatus engineering;
Shipbuilding and mechanical engineering; electric lines; Wire windings and chokes / coils
Standard classifications:
Material number: 2.0090
US: C12200
Further information:
Density: 8.94 g / dm³
Thermal conductivity: 330 W / m K
Electrical conductivity: 43 MS / m

Description:

Round copper rod is made of deoxidized copper with material number 2.0090 and is a rod made of solid material. This material has a limited residual phosphorus content and is therefore very easy to weld and braze as well as hydrogen resistance. It has excellent formability.

Due to its unique chemical and physical properties, copper rod is often used as a semi-finished product. It is easy to process and is used in the manufacture of various products made of copper. Copper has bactericidal properties and even in low concentrations it has a toxic effect on many microorganisms.

Thanks to its high electrical conductivity and high thermal conductivity, copper rods are used for heating technology (radiators, heat exchangers), electrical machines (electric motors, chokes / coils) and components (terminals, contact carriers).

Copper bar is widely used for:

  • Heating and cooling technology (heating and cooling elements);
  • Construction (as decoration for ambience, facades, etc.);
  • Electrical engineering and apparatus engineering;
  • Shipbuilding and mechanical engineering;
  • electric lines;
  • Wire windings and chokes / coils.
Copper rod has the following properties:
  • very good weldability and hard solderability;
  • excellent processing properties;
  • good bactericidal properties;
  • excellent formability;
  • good corrosion resistance.

documentation

Datasheet (German)
gr2
circle

d - outside diameter

Kupfer
2021-04-27

Data sheet

Type
Round bar
material
copper
operation area
Heating and cooling technology (heating and cooling elements); Construction (as decoration for ambience, facades, etc.); Electrical engineering and apparatus engineering; Shipbuilding and mechanical engineering; electric lines; Wire windings and chokes /
Material number
2.0090
EN
Cu-DHP
US
C12200
density
8,94 g/cm³
Melting point
1083 ° C
Thermal conductivity
330 W / (m K)
Electrical conductivity
45 m / Ω • mm²
Oberfläche
smooth (may contain handling or storage tags)

No customer reviews for the moment.
